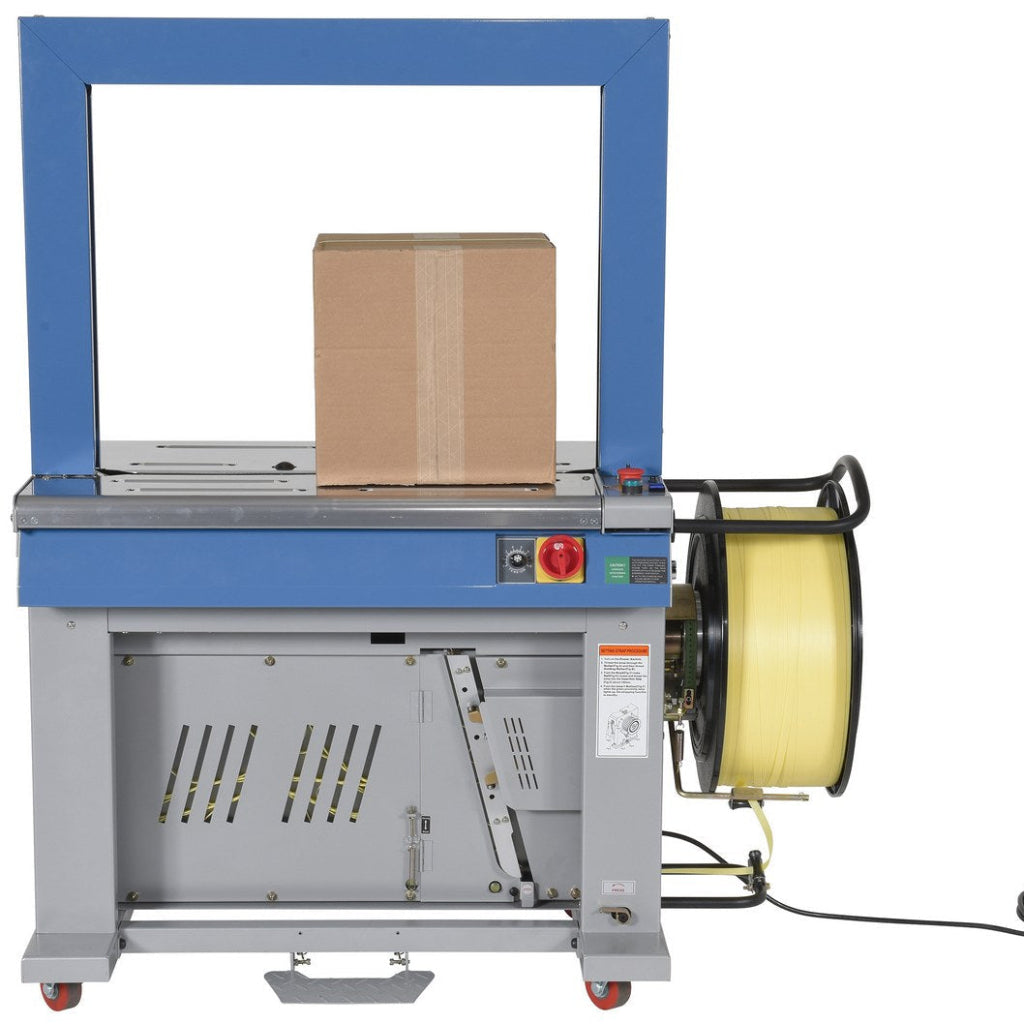

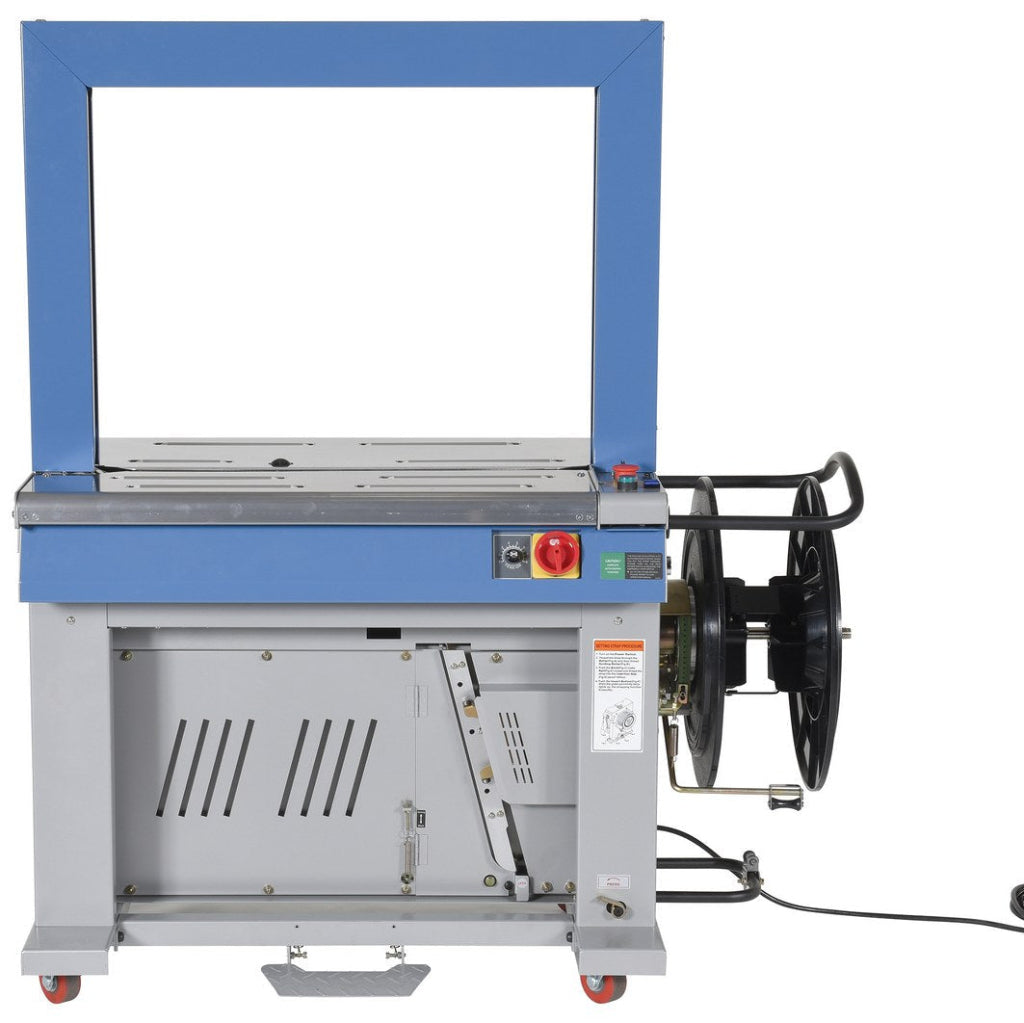

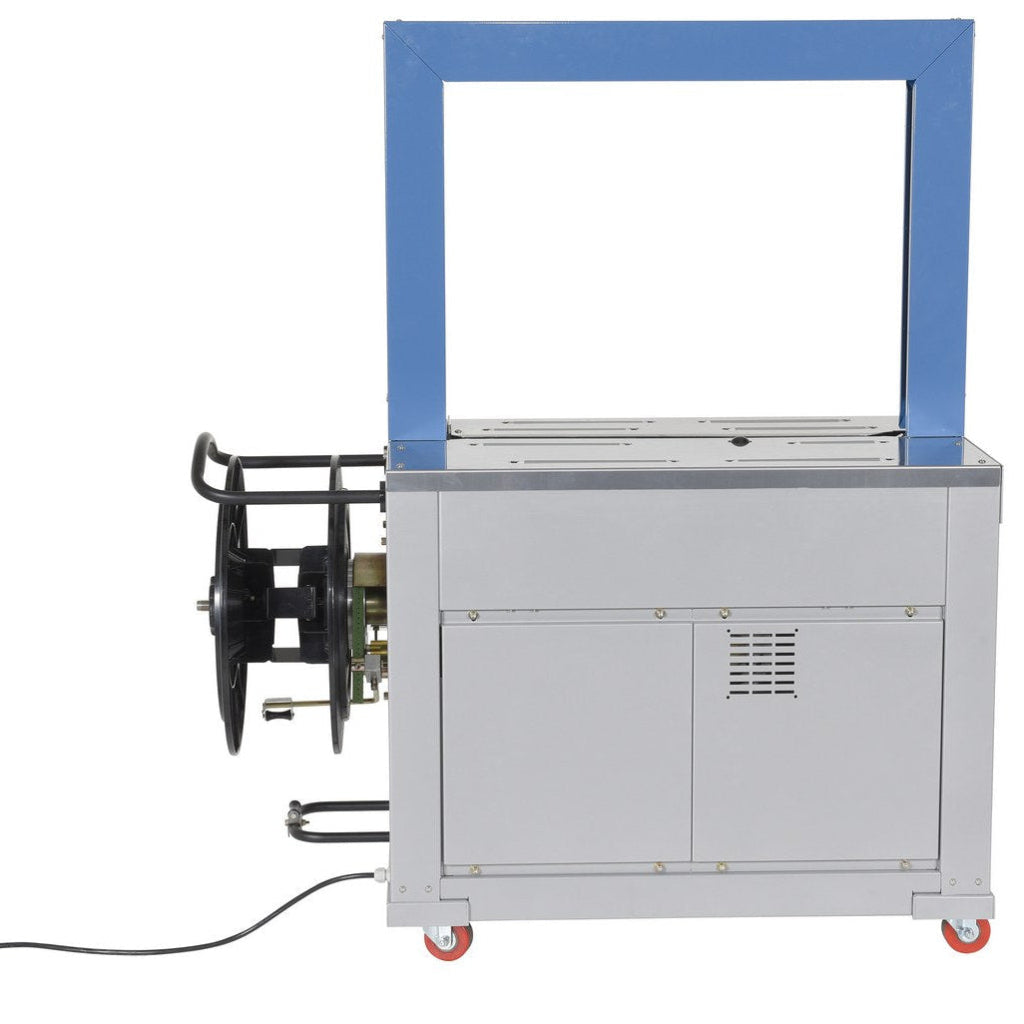

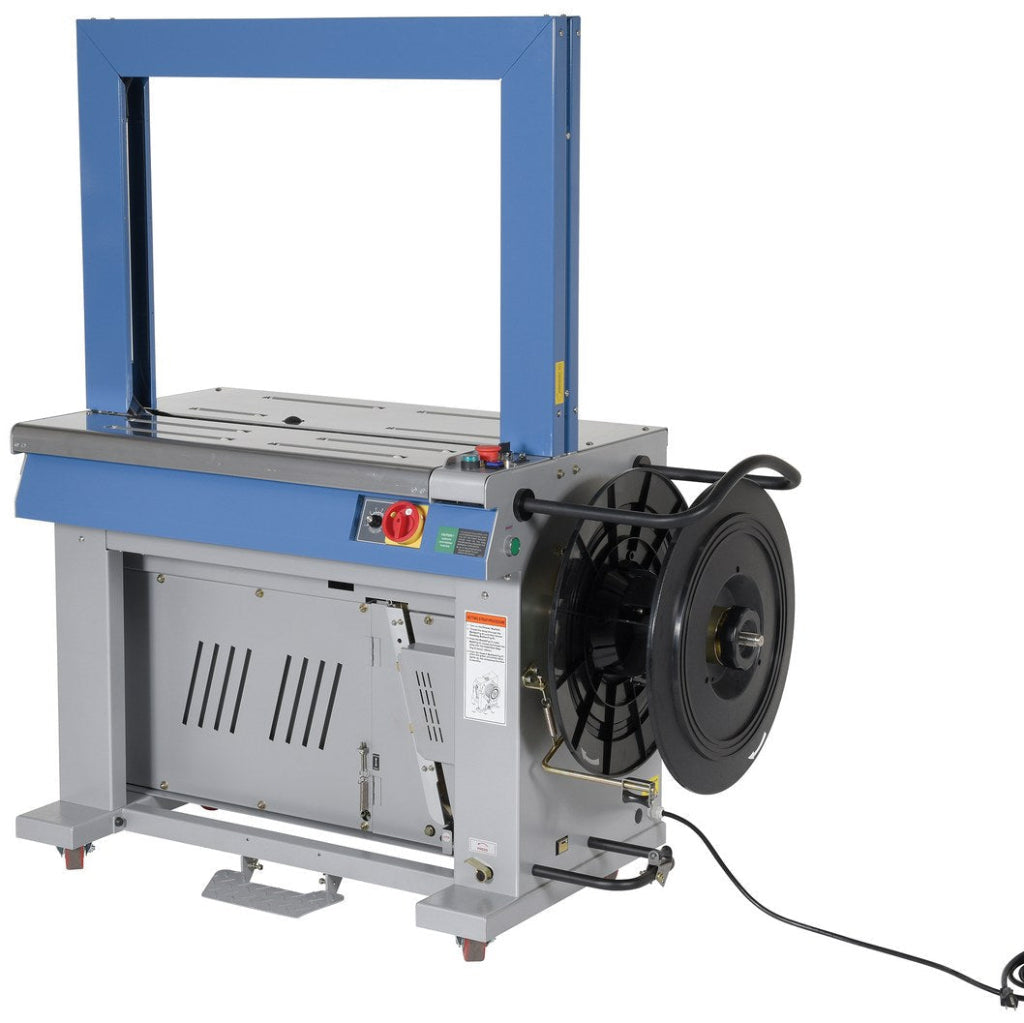

Vestil Steel Automatic High Speed Strapping Machine 23-1/8 In. x 48-3/8 In. x 58 In. Gray

Description

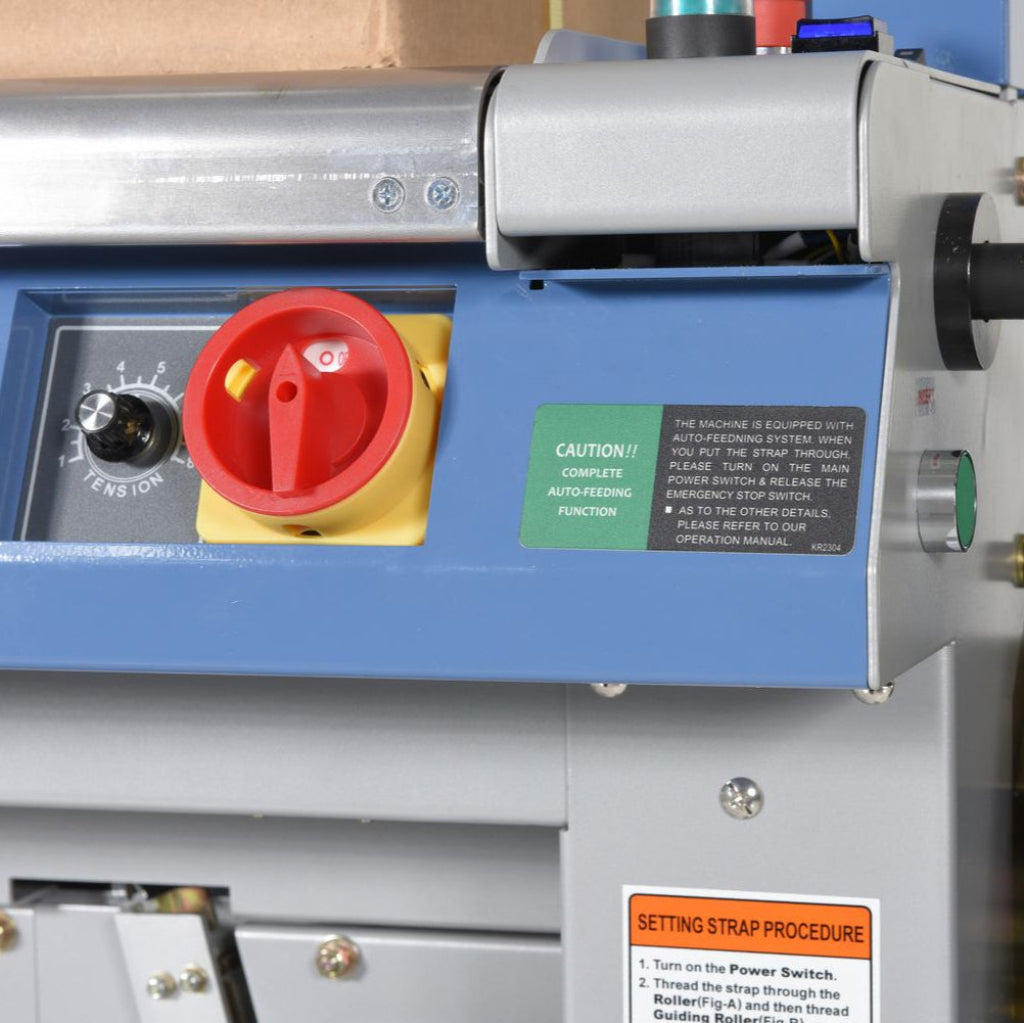

The high-speed strapping machine offers an efficient option for handling a variety of polypropylene strapping applications. This automatic arch strapping system includes an "auto-feeding" feature that supplies strapping to the arch, preparing it for each cycle. Its "auto-positioning" function ensures that the strapping is set correctly for each operation. A "jam-free" mechanism removes any misfed straps and resets the machine for continued use. Operators can control the unit using panel-mounted buttons, a foot pedal, or a tabletop ball switch, depending on their preference. Actual output may differ based on package size, chute dimensions, and operator handling. The machine uses heat welding for the strapping and is designed with accessible reloading and portability features. (Polypropylene strapping must be purchased separately.)

Specs

Maximum Package Width: 29-1/4 inches

Maximum Package Height: 22-1/2 inches

Table Height: 31-1/2 inches

Top Speed: Up to 30 cycles per minute

Electrical Requirements: 115 volts, single phase

Compatible Strapping Width: 1/2 inch polypropylene

Minimum Strap Tension: 15 pounds

Maximum Strap Tension: 150 pounds

Minimum Core Diameter for Strapping: 6 inches

Maximum Core Diameter for Strapping: 8 inches

Caster Width: 1-1/4 inches

Caster Diameter: 3 inches

Maximum Roll Diameter: 16 inches

Warranty

Manufacturer Coverage: 90 days

Coverage Type: Limited to parts

Option to Cancel: Yes

Returnable Packaging: Yes

PDFs

Manual: https://vestildocs.com/manuals/ASM-3123,%20Manual.pdf

Testing Certificate: https://vestildocs.com/certificates/ASM-3123.pdf
