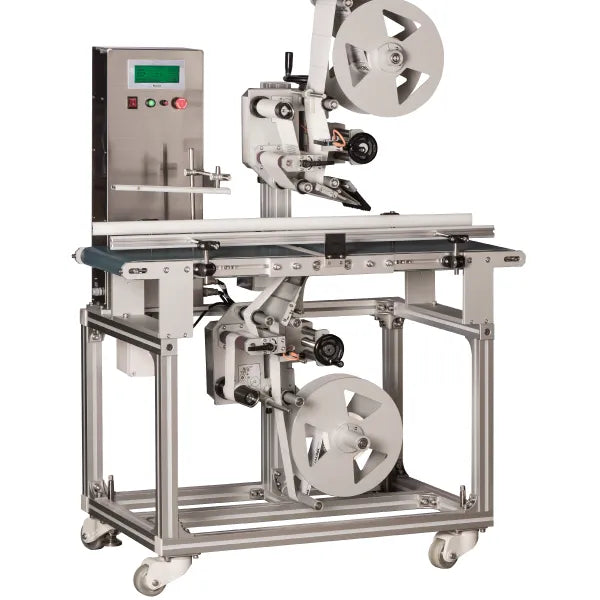

Tach-It Automatic Top and Bottom Label Applicator
$25,374.00
Description
Recognizing a demand for equipment positioned between automatic label dispensers and full inline labeling systems, Tach-It developed a range of automated labeling machines designed to feed products along a conveyor while applying top and bottom labels with wipe-on applicator heads. The Mini-Con TB label applicator is designed for straightforward operation without the need for specialized training or tools during label or product changeovers. It features a touch-sensitive control panel with five programmable memory presets where all settings can be adjusted and monitored. The system uses non-contact sensors for detecting both labels and products and applies labels to the top and bottom surfaces simultaneously. Additional features include a product counter, target counter, an 11 1/2-inch wide high-friction conveyor suitable for a variety of applications, a large roll capacity, and stepper motor-driven label heads for consistent label placement. To operate, an individual places items at the beginning of the conveyor, allowing them to move through the label heads for application before exiting at the opposite end. For facilities with an existing conveyor system, the Tach-It Mini-Con TB can be integrated accordingly.
Specs
Machine Dimensions: 42 inches in length, 24 inches in width, and 58 inches in height
Approximate Weight: 130 pounds
Supported Label Sizes: Minimum dimensions of 3/8 inch by 3/4 inch, maximum dimensions of 5 inches by 11 inches
Maximum Label Roll Diameter: 11 1/2 inches
Operating Speed: 59 feet per minute
Power Requirements: 110 Volt or 220 Volt, selectable through dip switch control
Core Size for Label Rolls: 3 inches
Warranty
Warranty: https://tach-it.com/wp-content/uploads/2023/10/warranty-and-general-conditions-mini-con-mini-con-s-and-mini-con-r.pdf
Brochure
Brochure: https://tach-it.com/wp-content/uploads/2020/07/mini-con-tb-brochure-new.pdf
