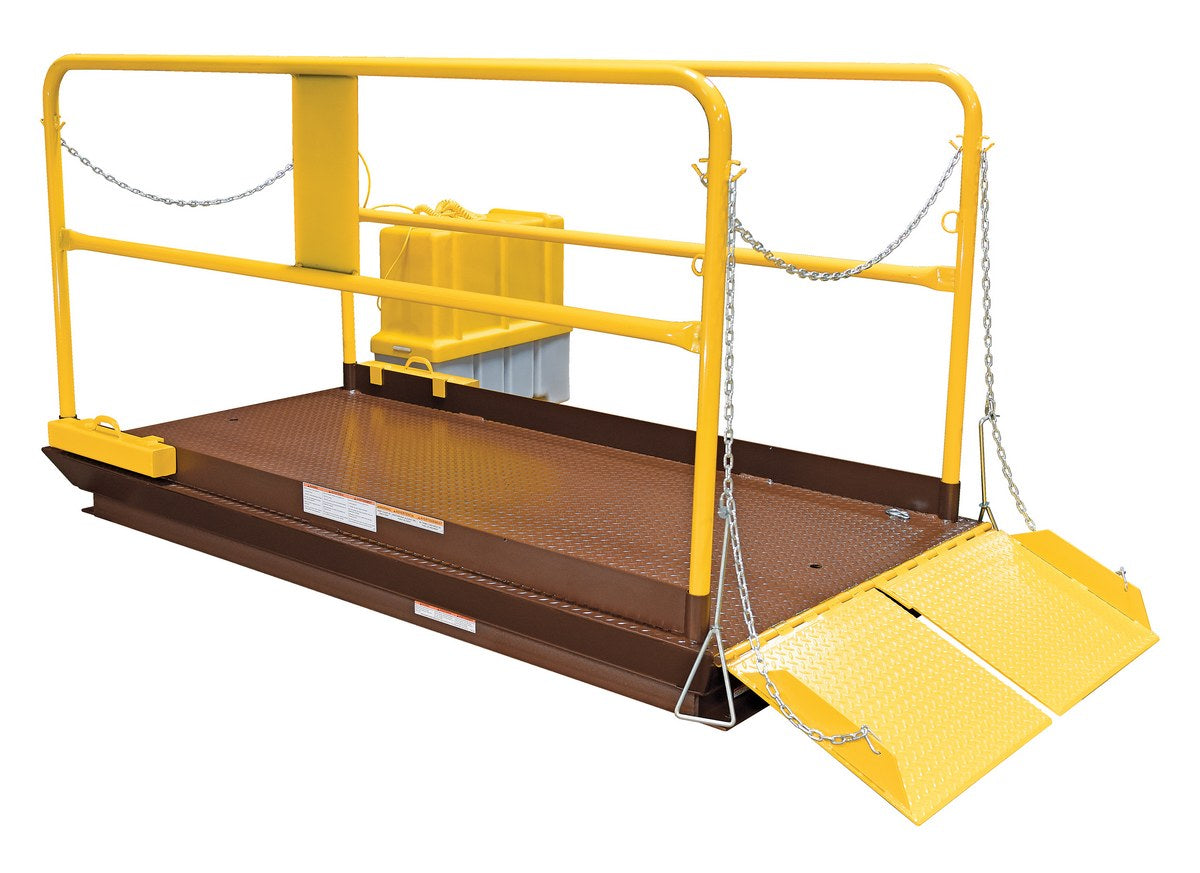

Vestil Steel Premium Truck Scissor Dock Lift 7 Ft x 12 Ft 10,000 Lb. Capacity Brown/Yellow
$24,927.92
Description
The truck scissor dock lift is designed to facilitate loading and unloading operations in locations where a permanent freight dock is unavailable.
The platform is constructed with a steel diamond plate deck for traction and is supported by hydraulic cylinders equipped with a safety velocity fuse to prevent unintended descent in the event of a line failure.
Standard equipment includes an upper travel limit switch, an overload relief valve, and a push-button control interface on a coil cord.
The electrical system features a pre-wired control box containing a magnetic starter and an overload fuse.
Safety features include removable high-visibility yellow handrails with fixed toe boards, along with beveled and electric toe-guards around the platform perimeter.
The external motor assembly is configured for installation at a distance of up to eight feet from the lift.
Specifications
Uniform Capacity: 10,000 lb.
Overall Frame Width: 62 in.
Overall Frame Length: 118 in.
Platform Dimensions: 84 in. Width x 144 in. Length
Platform Type: Treadplate (1/4 in. thickness)
Lowered Height: 14 in.
Raised Height: 72 in.
Axle Side Load Capacity: 7,000 lb.
Axle End Load Capacity: 8,250 lb.
External Motor Horsepower: 6.5 HP
External Motor Voltage/Phase: 460V / 3 Phase
Motor Frequency: 60 Hz
Motor Weight: 300 lb.
Push Button Coil Cord Length: 4-20 ft.
Handrail Height: 45 in.
Handrail Midrail Height: 21 in.
Toeboard Height: 4 in.
Beveled Toe Guard: 5 in.
Warranty
Manufacturer Warranty: 1 Year (Limited - Parts coverage)
Wearable Parts Warranty: 90 Days
Order Cancellation: Not Available
Packaging Returns: Not Available
PDFs
Manual: https://vestildocs.com/manuals/WL-100,%20MANUAL.pdf
Survey Sheet 1: https://vestildocs.com/surveys/WL-100.pdf
Survey Sheet 2: https://vestildocs.com/surveys/WL-100_FILLABLE_SURVEY_SHEET.pdf
Engineering Drawing: https://www.vestildocs.com/drawings/WL-100-10-712.pdf
Testing Certificate: https://vestildocs.com/certificates/WL-100-10-712.pdf
SDS Sheet: https://www.vestildocs.com/SDS/HO150.pdf
