Tach-It Automatic Definite Length Tape Dispenser 6180
$1,465.59
Description

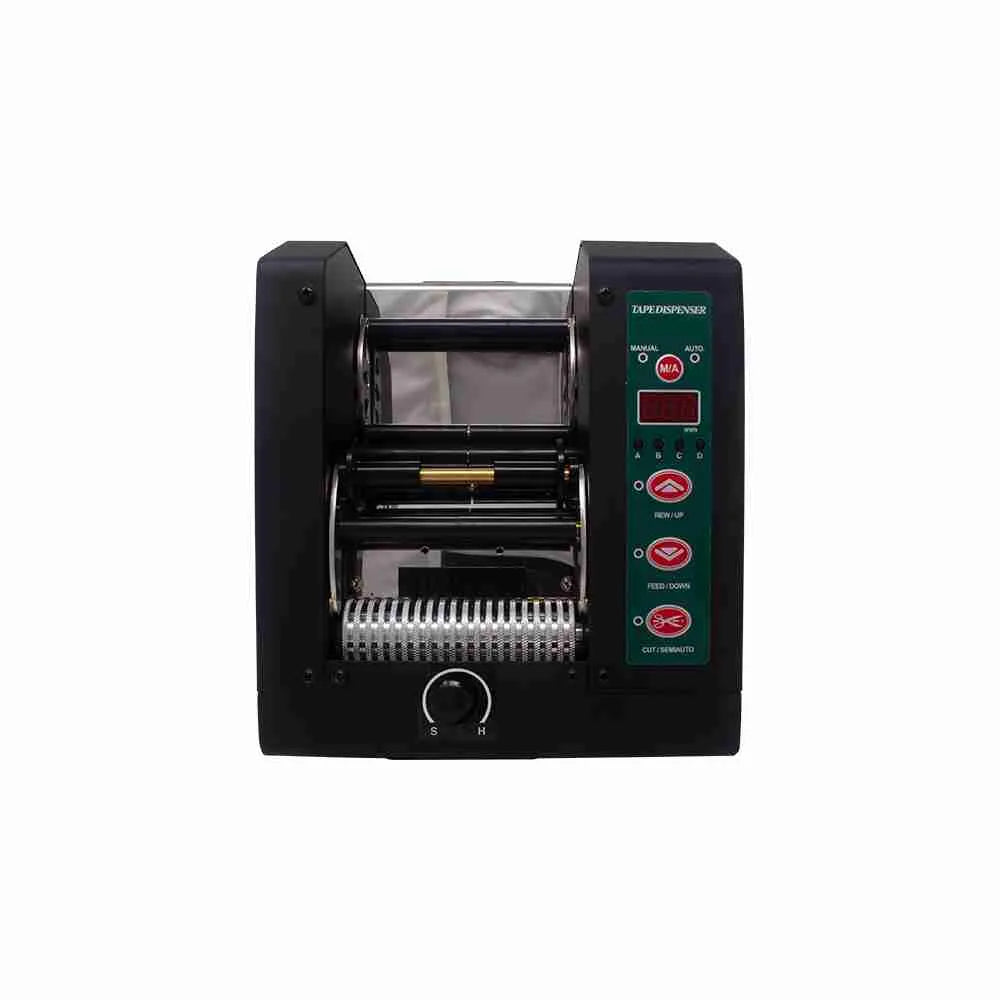

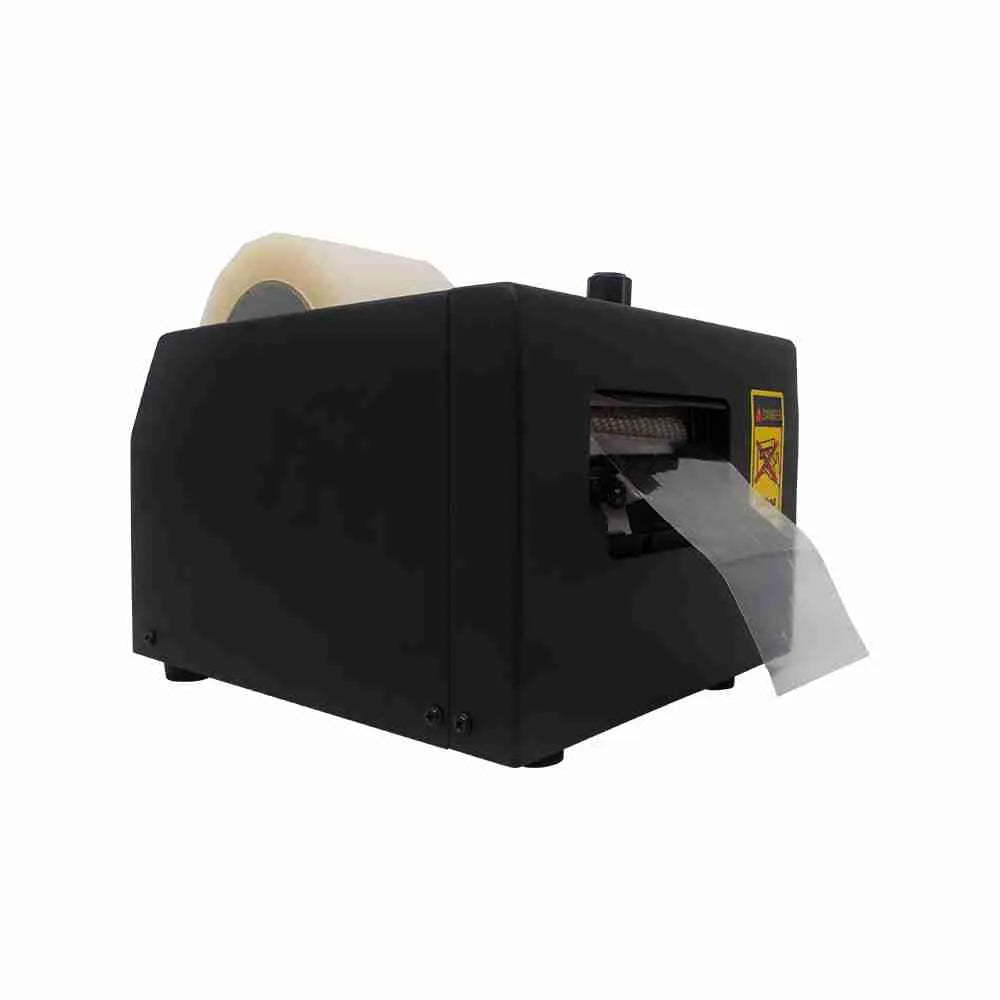

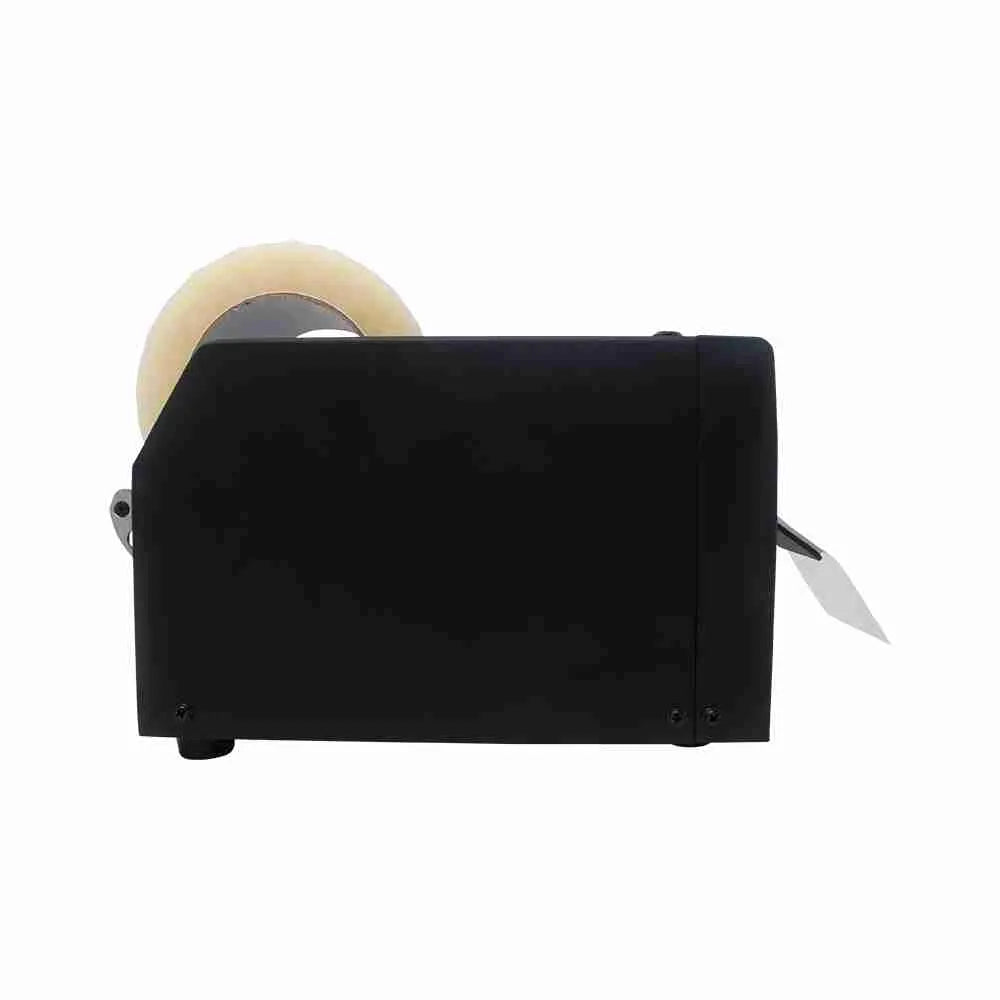

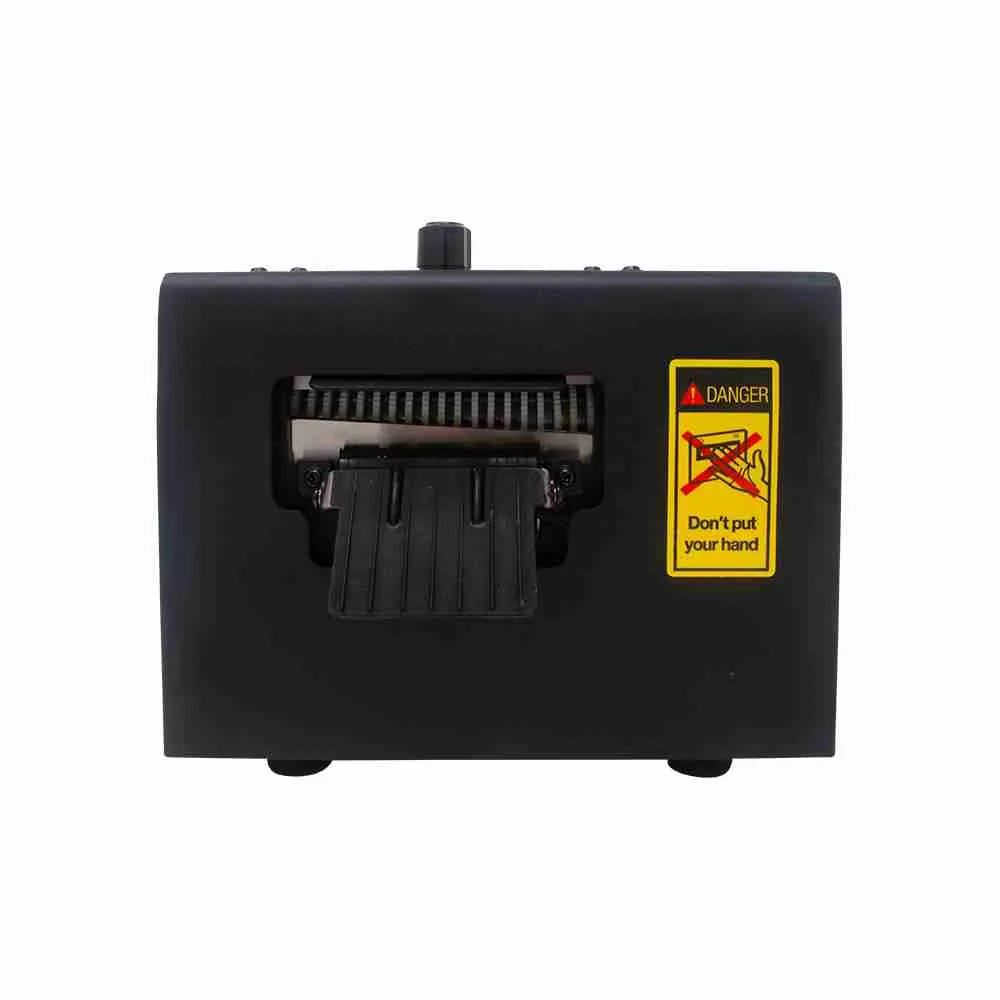

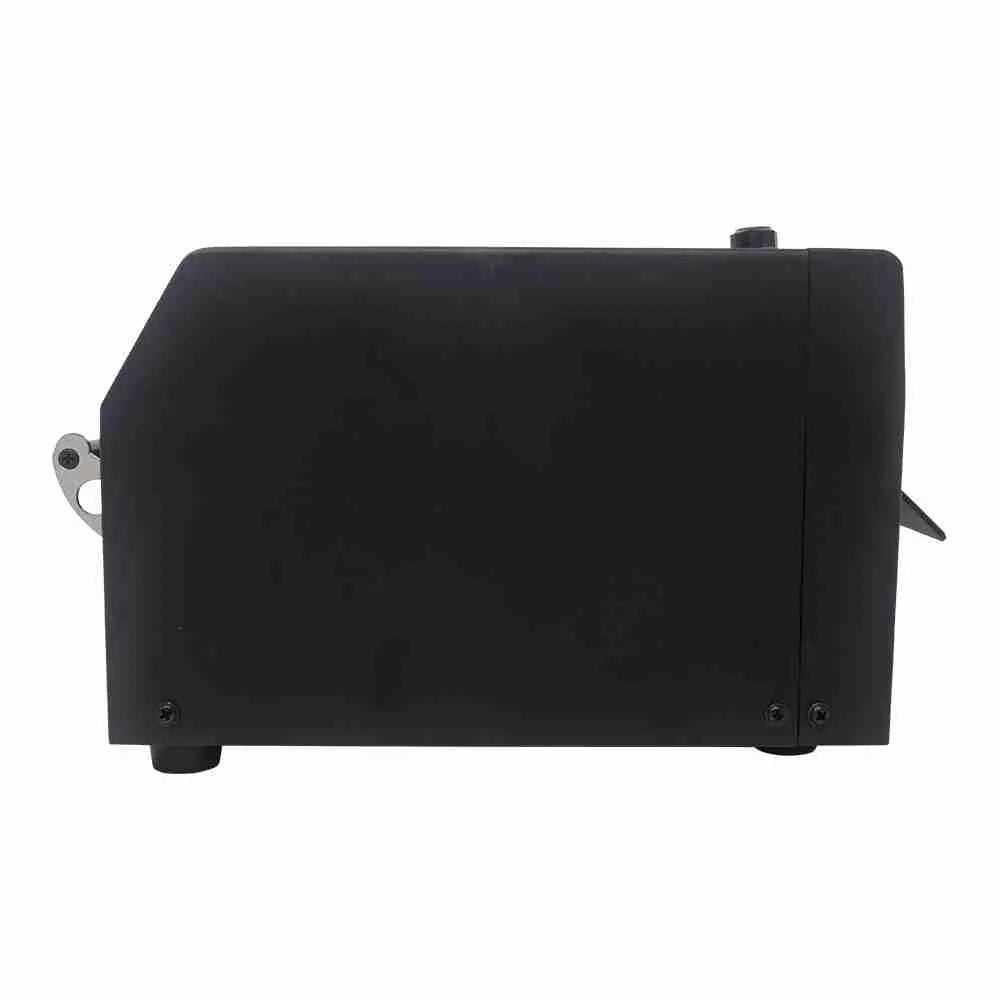

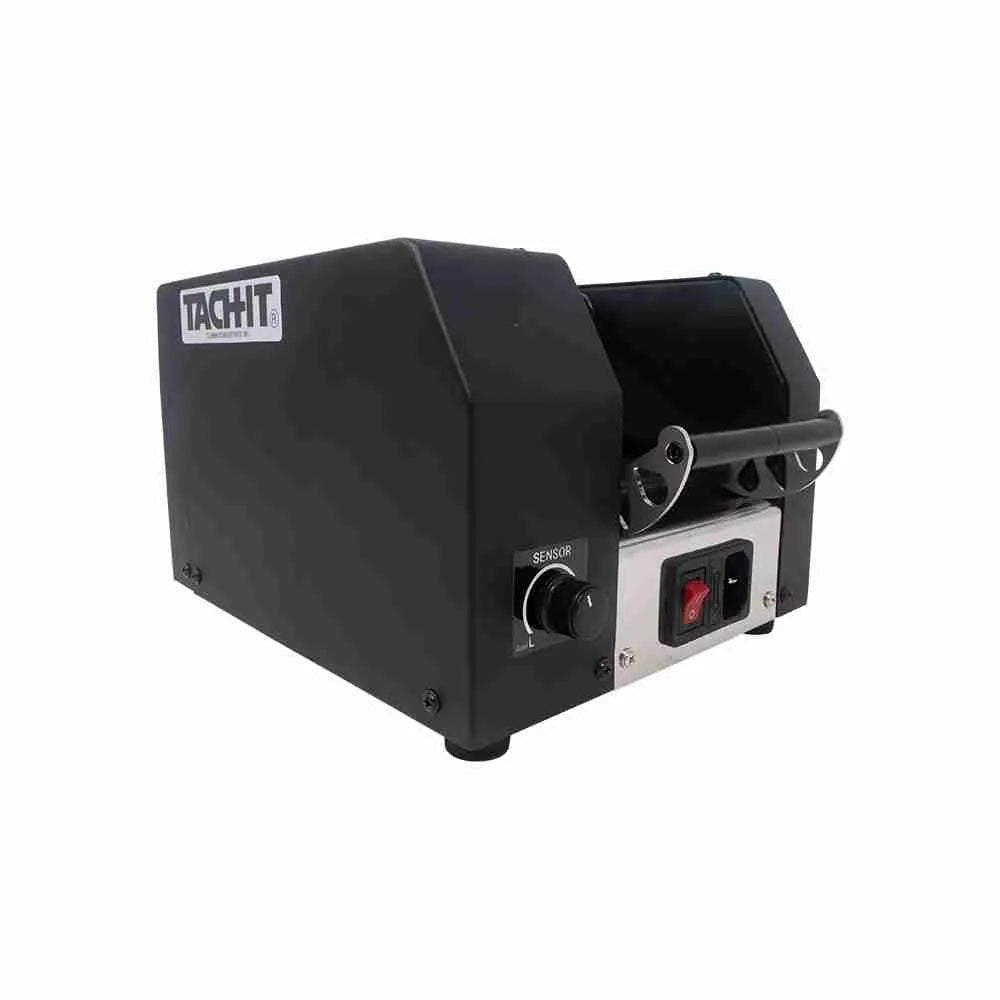

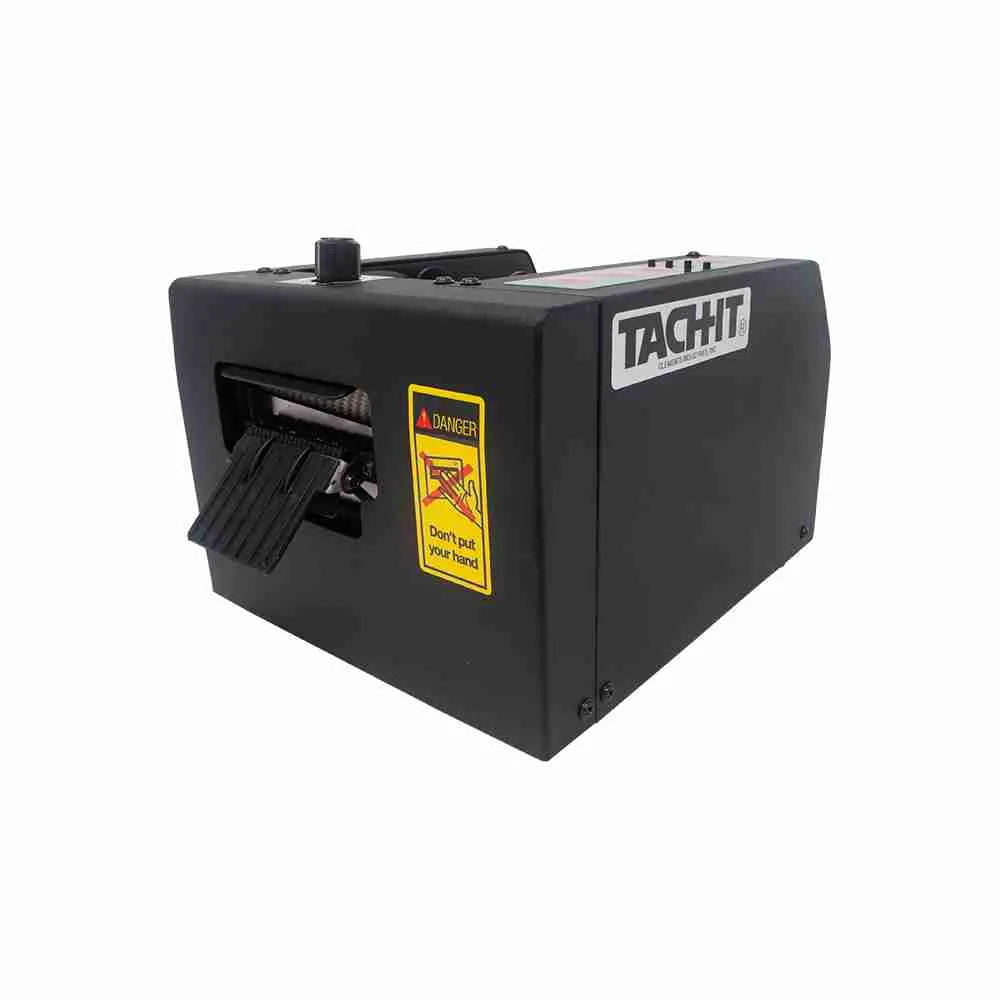

The Model 6180 is a heavy-duty automatic feed and cut tape dispenser capable of dispensing and cutting various commonly used packaging tapes and materials up to 3 1/8 inches wide. Built with durable all-metal internal components, the 6180 offers reliable performance and is user-friendly, featuring push-button and LED controls along with four programmable memory presets. This dispenser can cut tape lengths ranging from 1/2 inch to 39.3 inches.
The 6180 offers three operating modes:
-
Random Mode: The operator presses the feed button to feed the desired length of tape, then presses the cut button to cut it.
-
Semi-Automatic Mode: A pre-set length of tape is dispensed and cut. After removing the tape, the operator presses the cut button again to feed the next piece.
-
Automatic Mode: The dispenser feeds the tape to the preset length, and once the tape is removed, the next piece is automatically fed.
Designed for bench-top use, the Model 6180 features a unique cradle that accommodates large tape rolls, regardless of core size, and offers adjustable tape pressure to ensure smooth feeding.
Specs

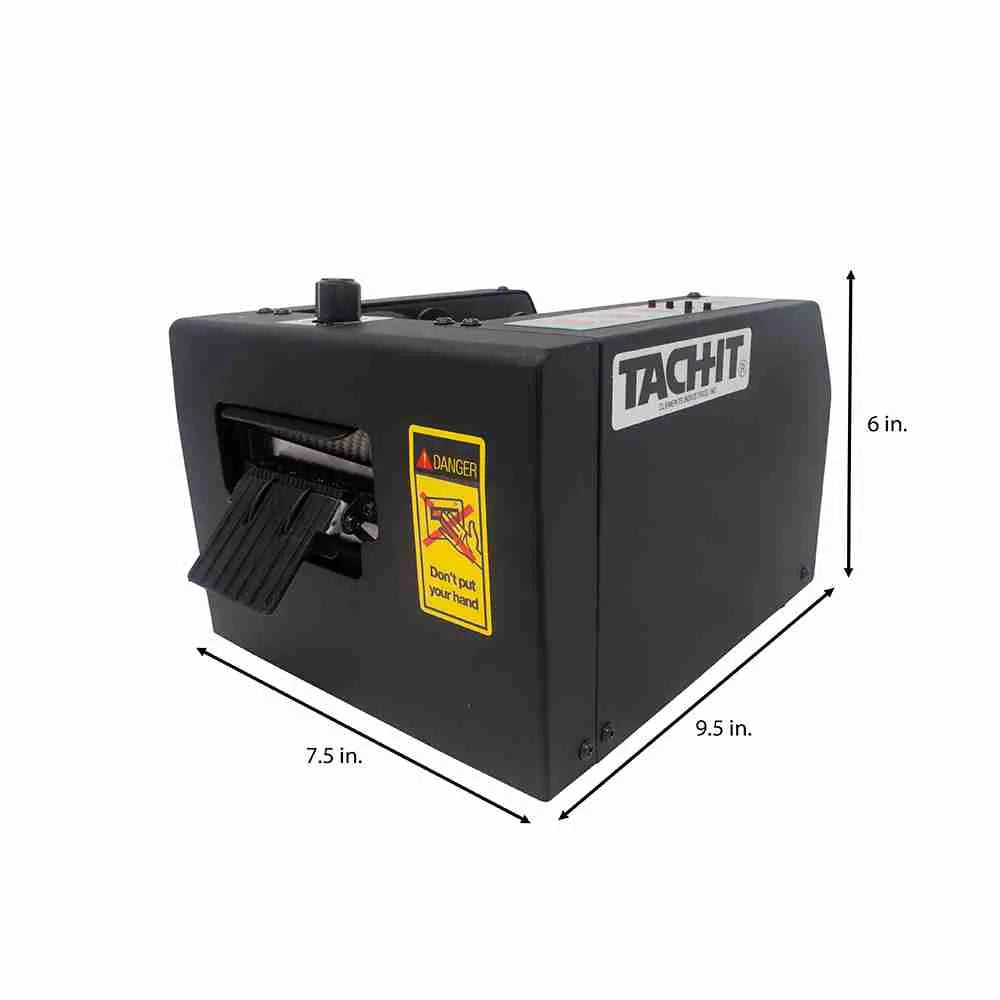

Machine Dimensions: Length – 9 inches, Width – 7 1/2 inches, Height – 6 inches
Weight: 11 1/2 pounds
Tape Width: Maximum – 3 1/8 inches, Minimum – 3/4 inch
Tape Length: Maximum – 39.3 inches, Minimum – 1 inch
Core Size: Not applicable due to the cradle design
Maximum Tape Roll Diameter: 12 inches (an optional stand for larger tape rolls is available)
Power: 110 Volt VAC
Dispensing Speed: 7 inches per second
CE Approved
Warranty
Warranty: https://tach-it.com/wp-content/uploads/2021/05/warranty-and-general-conditions-6115-6180-and-6605.pdf
Manual/Brochure
Manual: https://tach-it.com/wp-content/uploads/2021/05/model-6115-6180-and-6605-manual.pdf
Brochure: https://tach-it.com/wp-content/uploads/2023/09/6180-brochure-metal-gears-.pdf
