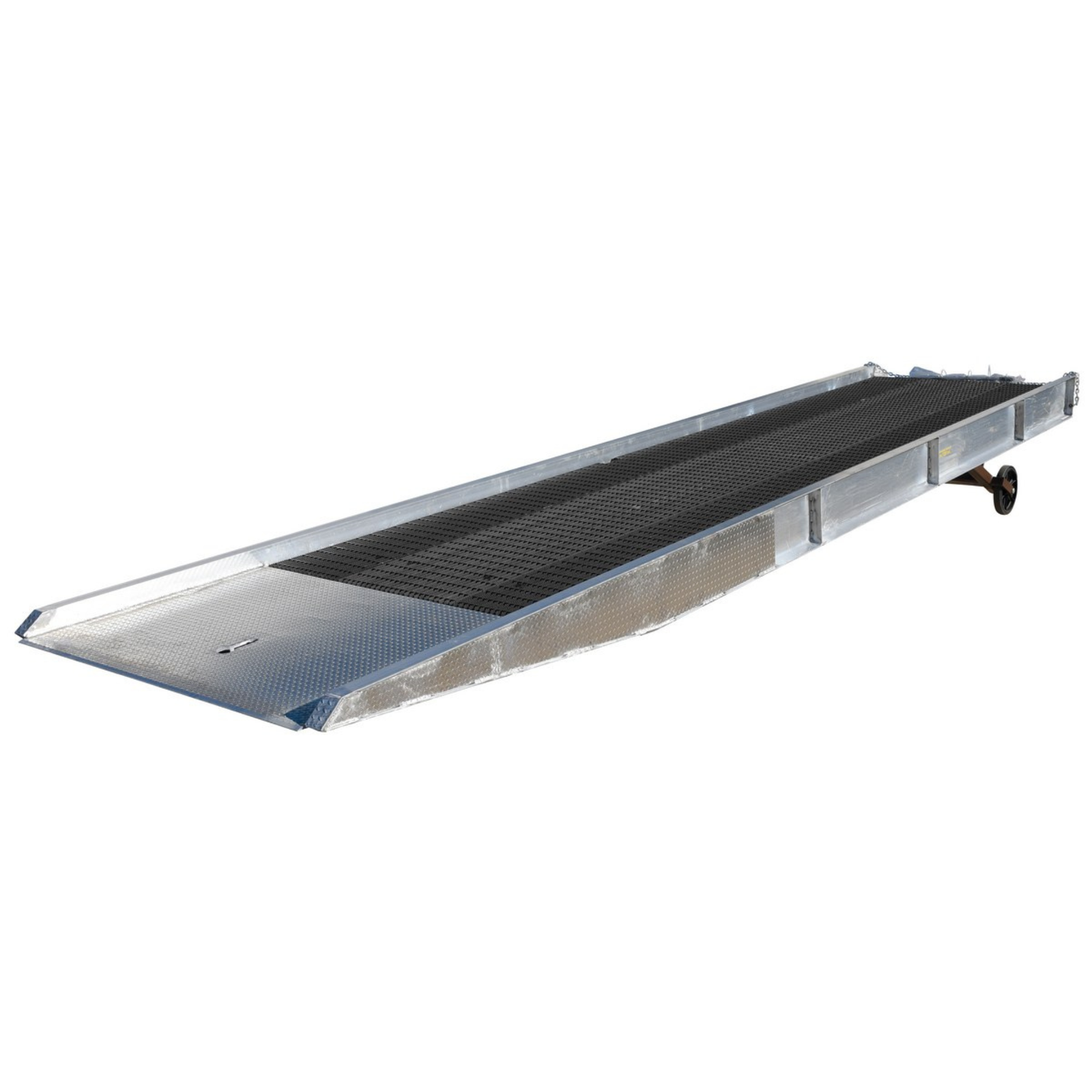

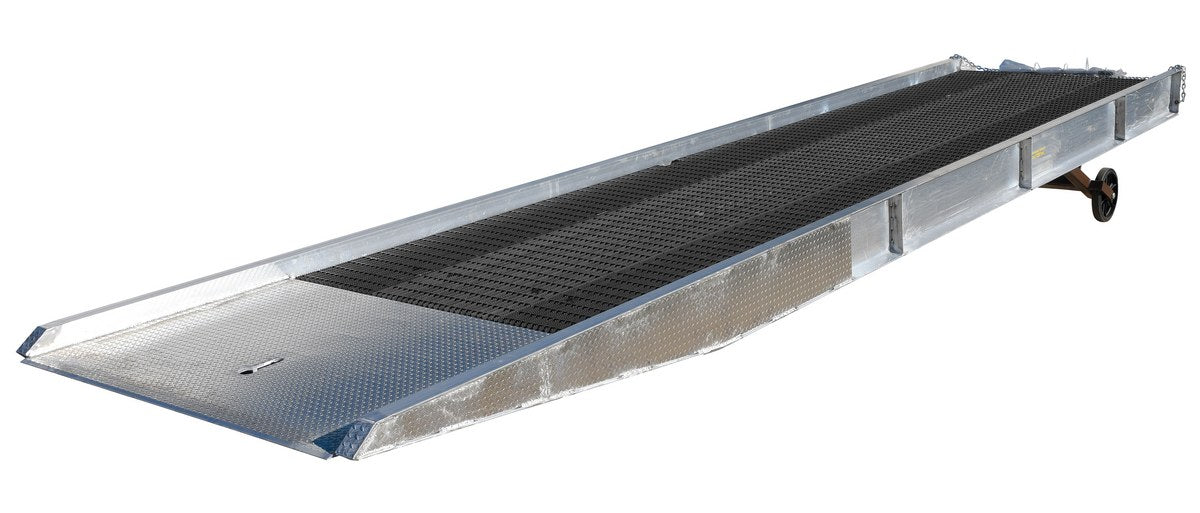

Vestil Aluminum/Steel Yard Ramp Grating 74 In. x 30 Ft. 20,000 Lb. Capacity Silver
$26,030.96
Description
The portable aluminum yard ramp is designed for ground-level loading and unloading of trailers.
The unit features an adjustable service height and is engineered for manual positioning and operation by a single person.
The walking surface is constructed with steel bar grating to provide traction and durability.
Standard functional components include a manual hydraulic hand pump, a safety pressure relief valve, and anchor chains to secure the ramp during use.
The frame includes an integrated tow bar pocket to assist with the transport and maneuvering of the unit.
Specifications
Uniform Capacity: 20,000 lb.
Usable Width: 66 in.
Hydraulic Lift Type: Hand Pump
Tire Size: 18 in. Diameter
Tire Thickness: 5 in.
Curb Height: 4 in.
Lowered Height: 45 in.
Raised Height: 62 in.
Usable Lip Support Edge: 13-1/2 in.
Deck Type: Steel Bar Grating
Warranty
Manufacturer Warranty: 1 Year (Limited - Parts coverage)
Wearable Parts Warranty: 90 Days
Order Cancellation: Not Available
Packaging Returns: Not Available
PDFs
Manual: https://vestildocs.com/manuals/SY,%20MANUAL.pdf
Engineering Drawing: https://www.vestildocs.com/drawings/SY-207230.pdf
Testing Certificate: https://vestildocs.com/certificates/SY-207230.pdf
