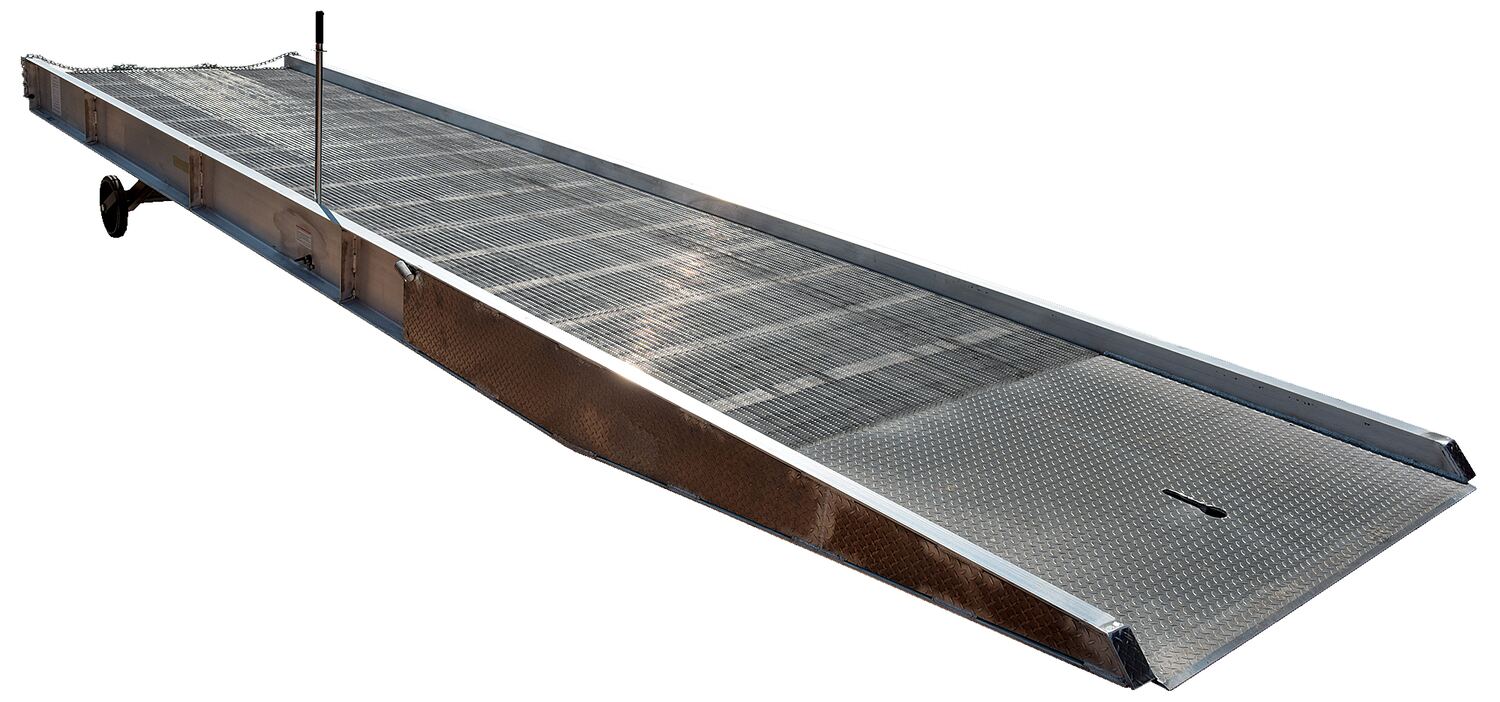

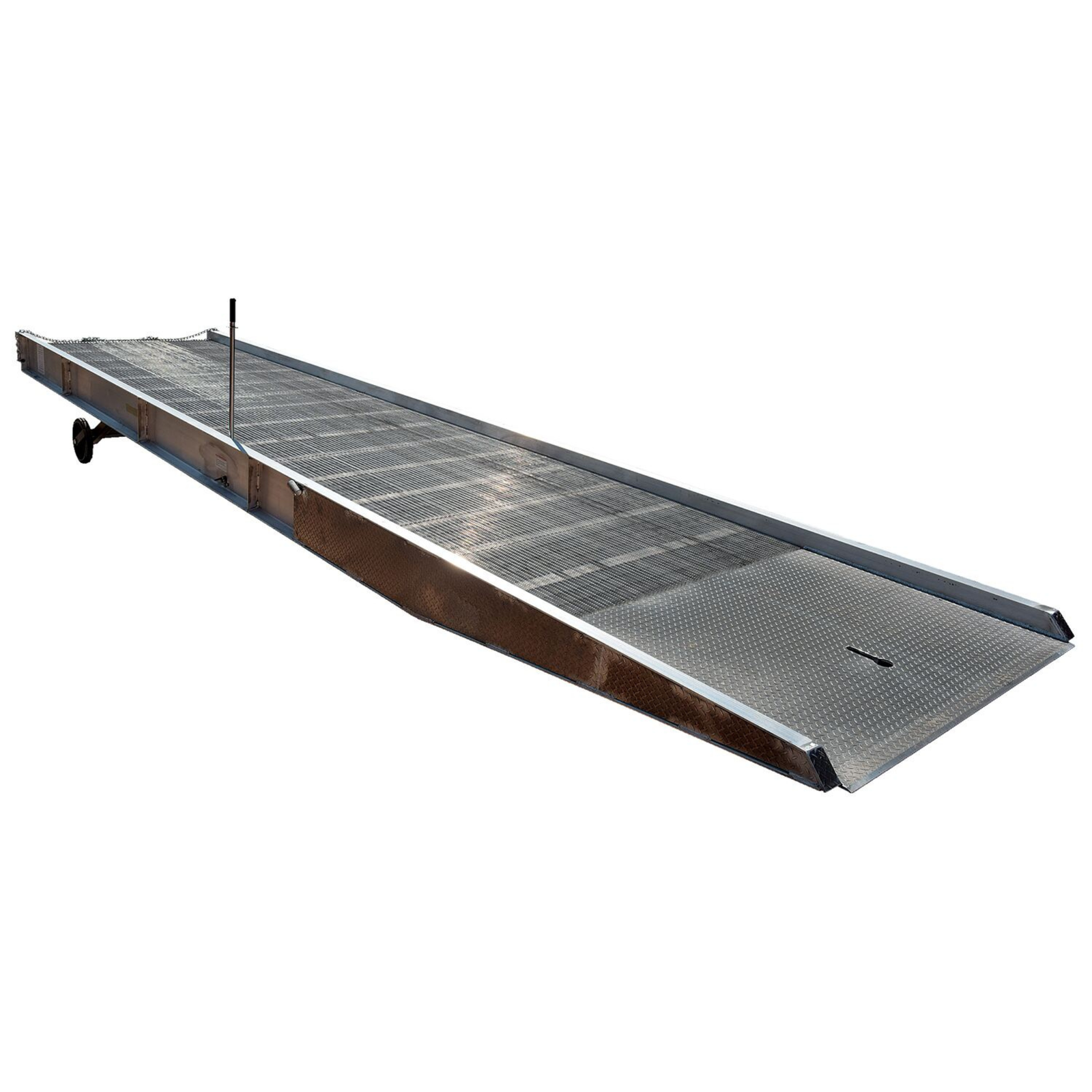

Vestil Aluminum Yard Ramp 360 In. x 86 In. 30000 Lb. Capacity Silver
$25,995.25
Description
The portable aluminum yard ramp is designed to facilitate the loading and unloading of trailers from ground level.
The unit features an adjustable service height and is engineered for manual positioning and operation by a single person.
The walking surface is constructed from aluminum bar grating, which provides traction and is resistant to rust and corrosion.
Standard functional components include a manual hydraulic hand pump, a safety pressure relief valve, and anchor chains to secure the ramp during use.
The frame includes an integrated tow bar pocket to assist with the transport and maneuvering of the unit.
Specifications
Uniform Capacity: 30,000 lb.
Usable Width: 78 in.
Hydraulic Lift Type: Hand Pump
Tire Size: 18 in. Diameter
Tire Thickness: 5 in.
Curb Height: 4 in.
Lowered Height: 45 in.
Raised Height: 62 in.
Usable Lip Support Edge: 13-1/2 in.
Deck Type: Aluminum Bar Grating
Warranty
Manufacturer Warranty: 1 Year (Limited - Parts coverage)
Wearable Parts Warranty: 90 Days
Order Cancellation: Not Available
Packaging Returns: Not Available
PDFs
Manual: https://vestildocs.com/manuals/AY,%20MANUAL.pdf
Engineering Drawing: https://www.vestildocs.com/drawings/AY-308430.pdf
Testing Certificate: https://vestildocs.com/certificates/AY-308430.pdf
