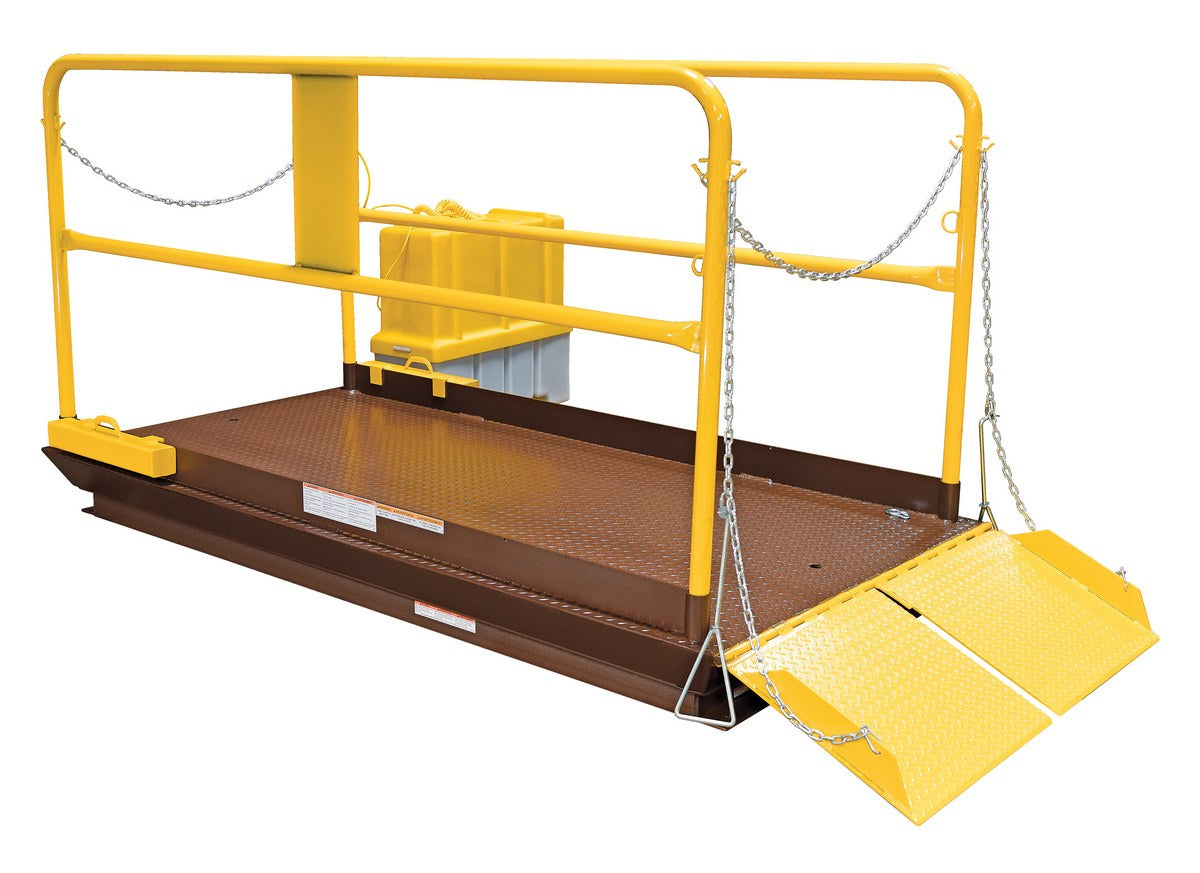

Vestil Steel Premium Truck Scissor Dock Lift 7 Ft x 8 Ft 12,000 Lb. Capacity Brown/Yellow
$24,220.32
Description
The truck scissor dock lift is designed to facilitate loading and unloading operations in locations without a permanent freight dock.
The platform is constructed with a heavy-gauge steel diamond plate deck to provide a durable traction surface.
Integrated safety features include hydraulic cylinders equipped with a safety velocity fuse to prevent platform descent in the event of a hydraulic line failure.
Operational components include an upper travel limit switch, an overload relief valve, and a push-button control interface on a coil cord.
The pre-wired control box is equipped with a magnetic starter and an overload fuse for electrical protection.
Standard safety equipment consists of removable high-visibility yellow handrails with fixed toe boards, along with beveled and electric perimeter toe-guards.
The external motor assembly is configured for placement at a distance of up to eight feet from the lift unit.
Specifications
Uniform Capacity: 12,000 lb.
Overall Frame Width: 62 in.
Overall Frame Length: 93 in.
Platform Length: 96 in.
Platform Width: 84 in.
Lowered Height: 14 in.
Raised Height: 72 in.
Push Button Coil Cord Length: 4-20 ft.
External Motor Horsepower: 6.5 HP
External Motor Voltage/Phase: 460V / 3 Phase
Motor Frequency: 60 Hz
Motor Weight: 300 lb.
Axle Side Load Capacity: 8,500 lb.
Axle End Load Capacity: 9,750 lb.
Handrail Height: 45 in.
Handrail Midrail Height: 21 in.
Toeboard Height: 4 in.
Beveled Toe Guard: 5 in.
Platform Type: Treadplate
Platform Thickness: 1/4 in.
Warranty
Manufacturer's Primary Warranty: 1 Year (Limited - Parts coverage)
Manufacturer's Secondary Warranty: 90 Days (Wearable Parts coverage)
Order Cancellation: Not Permitted
Packaging Returns: Not Permitted
PDFs
Manual: https://vestildocs.com/manuals/WL-100,%20MANUAL.pdf
Survey Sheet 1: https://vestildocs.com/surveys/WL-100.pdf
Survey Sheet 2: https://vestildocs.com/surveys/WL-100_FILLABLE_SURVEY_SHEET.pdf
Engineering Drawing: https://www.vestildocs.com/drawings/WL-100-12-78.pdf
Testing Certificate: https://vestildocs.com/certificates/WL-100-12-78.pdf
SDS Sheet: https://www.vestildocs.com/SDS/HO150.pdf
