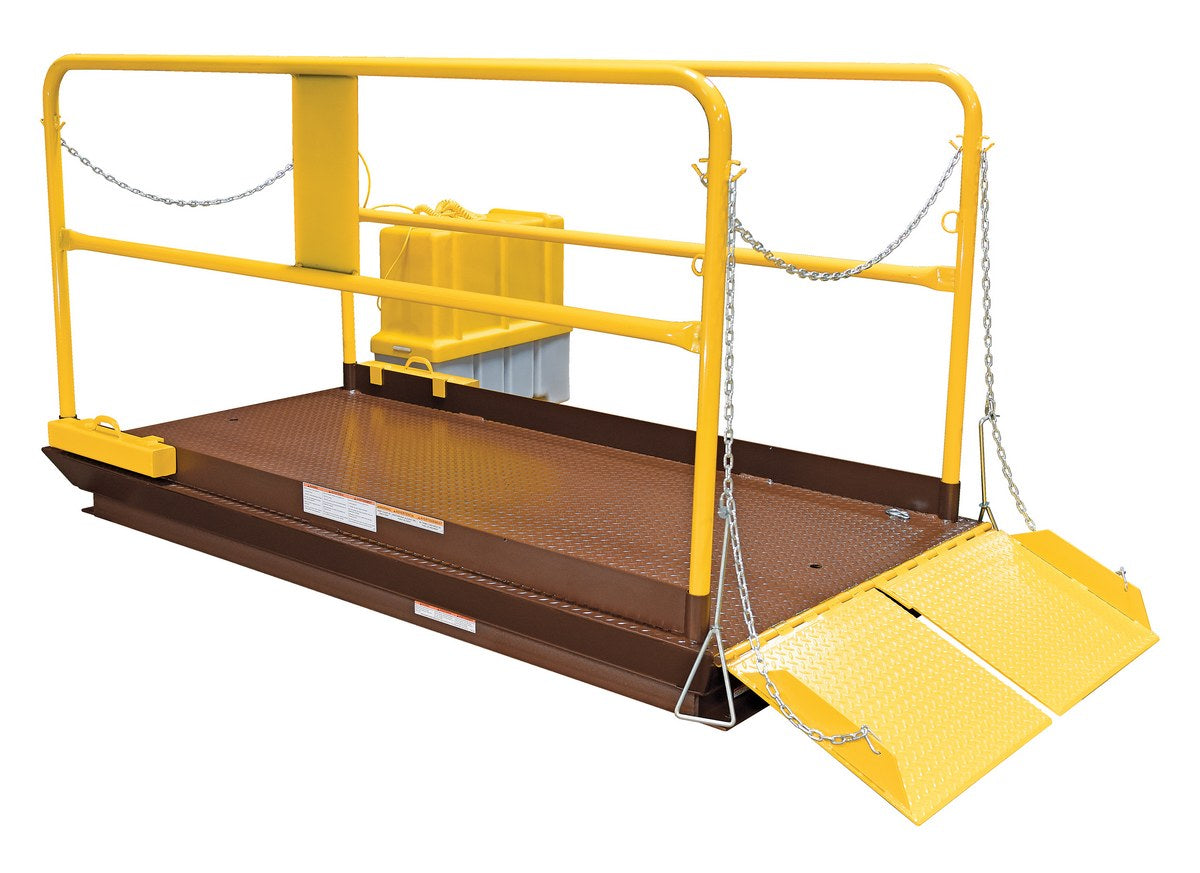

Vestil Steel Premium Truck Scissor Dock Lift 8 Ft x 10 Ft 10,000 Lb. Capacity Brown/Yellow
$24,370.70
Description
The truck scissor dock lift provides a functional solution for loading and unloading operations in locations without a permanent freight dock.
Constructed with a heavy-gauge steel diamond plate deck for traction, the unit utilizes hydraulic cylinders equipped with a safety velocity fuse to prevent platform descent in the event of a line failure.
Operational control is managed via a push-button interface on a coil cord, supported by a pre-wired control box that includes a magnetic starter and an overload fuse.
To regulate performance, the system is equipped with an upper travel limit switch and an overload relief valve.
Standard safety features include removable high-visibility yellow handrails with fixed toe boards, as well as beveled and electric toe-guards installed around the platform perimeter.
For installation flexibility, the external motor assembly is designed to be located at a distance of up to eight feet from the lift unit.
Specifications
Uniform Capacity: 10,000 lb.
Overall Frame Width: 86 in.
Overall Frame Length: 118 in.
Platform Dimensions: 96 in. Width x 120 in. Length
Platform Type: Treadplate (1/4 in. thickness)
Lowered Height: 14 in.
Raised Height: 72 in.
Axle Side Load Capacity: 7,000 lb.
Axle End Load Capacity: 8,250 lb.
External Motor Horsepower: 6.5 HP
External Motor Voltage/Phase: 460V / 3 Phase
Motor Frequency: 60 Hz
Motor Weight: 300 lb.
Push Button Coil Cord Length: 4-20 ft.
Handrail Height: 45 in.
Handrail Midrail Height: 21 in.
Toeboard Height: 4 in.
Beveled Toe Guard: 5 in.
Warranty
Manufacturer Warranty: 1 Year (Limited - Parts coverage)
Wearable Parts Warranty: 90 Days
Order Cancellation: Not Available
Packaging Returns: Not Available
PDFs
Manual: https://vestildocs.com/manuals/WL-100,%20MANUAL.pdf
Survey Sheet 1: https://vestildocs.com/surveys/WL-100.pdf
Survey Sheet 2: https://vestildocs.com/surveys/WL-100_FILLABLE_SURVEY_SHEET.pdf
Engineering Drawing: https://www.vestildocs.com/drawings/WL-100-10-810.pdf
Testing Certificate: https://vestildocs.com/certificates/WL-100-10-810.pdf
SDS Sheet: https://www.vestildocs.com/SDS/HO150.pdf
