Tach-It Round Product Label Applicator
$15,735.00
Description

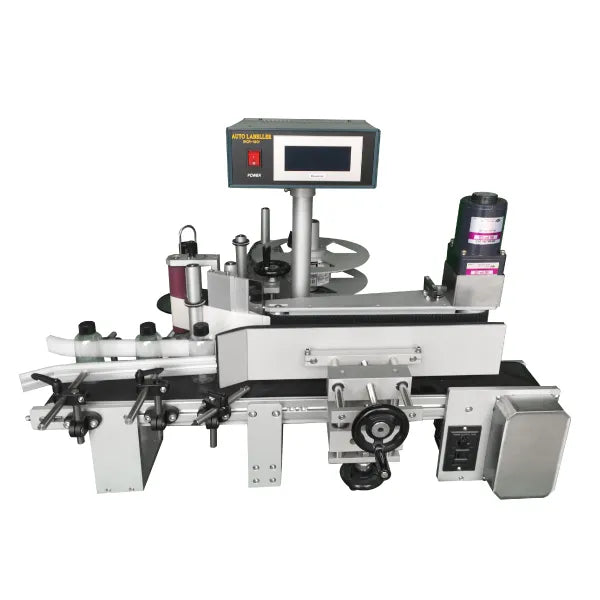

The Tach-It Mini-Con-R is a tabletop system designed to apply labels to bottles and other round items. Products are moved along a conveyor and labels are applied using a wipe-on applicator. The system can be adjusted without specialized tools for label or product changes. It features a touch screen control panel with five programmable memory presets for adjustments and monitoring.
The machine uses non-contact sensors for detecting both products and labels. It includes a product and target counter. The system is equipped with a 4 1/4-inch wide high-friction conveyor (with wider options available) and supports large label roll capacities. Stepper motors are utilized to maintain label placement. The operation involves placing a product on the conveyor, which moves it through the label applicator. A vertical conveyor then rotates the bottle against a platen to help secure the label before the product exits the system.
Specifications
-
Machine Dimensions: Length – 57 inches, Width – 38 inches, Height – 20 inches
-
Approximate Weight: 130 pounds
-
Label Dimensions: Minimum – 3/8 inch by 3/4 inch, Maximum – 5 inches by 11 inches
-
Maximum Label Roll Diameter: 11 1/2 inches
-
Operating Speed: Up to 59 feet per minute
-
Power Requirements: 110 Volt with dip switch control
-
Label Core Size: 3 inches
Warranty
Warranty: https://tach-it.com/wp-content/uploads/2023/10/warranty-and-general-conditions-mini-con-mini-con-s-and-mini-con-r.pdf
Manual/Brochure
Manual: https://tach-it.com/wp-content/uploads/2017/08/mini-con-r-operations-manual.pdf
Brochure: https://tach-it.com/wp-content/uploads/2017/08/mini-con-r-brochure-new.pdf
